Product Features:

• The compact size and practical design of the makes it both easy to carry and also wearable across the chest , making the style-conscious user look even more stylish.
• Use SiRF Star III chipset.
• 20 - channel GPS Receiver for fast acquisition and reacquisition. *
• 200,000 effective correlators for fast Time To First Fix (TTFF), even at poor satellite signal.*
• Built-in WAAS/EGNOS Demodulator.*
• Compatible with Bluetooth Serial Port Profile (SPP) completely
• Built-in rechargeable Lithium-ion battery for at least 8 hours operation.
• Built-in rechargeable battery for memory for RTC backup and fast Time To First Fix. (TTFF)
• Support NMEA0183 v2.2 data protocol or SiRF binary code.
• Provide expand terminal and can contact to other system without Bluetooth device.

Specifications:

• Tracks up to 20 satellites.*
• Receiver: L1, C/A code.
• Update rate: 1 HZ(max)
• Antenna Type: Built in Patch Antenna.
• Minimum signal tracked: -159dBm *
• Dimension: 64 x 22 x 15 mm
• Weight : < 35g
• On/off switch: slide switcher
• Lithium-ion battery lasts for more than 8 hours of use.
• Operation Temperature: -10 ⁰C to + 60 ⁰C
• Store Temperature: -20 ⁰C to + 70 ⁰C
• Operation Humidity:5% to 95% No condensing
• 3 Led Function: Bluetooth , Navigation Update and Battery/changer status Indication.

Position Accuracy:

• Non DGPS (Differential GPS):
   Position : 5 - 25 m CEP without SA
   Velocity : 0.1m / sec
   Time : 1 μsec sync GPS time
• EGNOS/WAAS /Beacon:
   Position :
      < 2.2 m, horizontal 95 % of time
      < 5 m, vertical 95 % of time

Acquisition Time:

• Acquisition Time(averaged)

Reacquisition: 0.1sec.
Cold start: < 42 seconds.
Warm start: < 38 seconds .
Hot start: < 1 seconds

Interface:

• Output terminal: Mini-USB (DATA I/O ﹜CMOS Level)
  NMEA protocol output : V 2.2
     Baud Rate: 38400 bps
      Data bit: 8
      Parity: N
      Stop bit: 1
   Output Format:
   Standard : GGA(1),GSA(5),GSV(5), RMC(1),VTG(1).
   Optional : GLL, SiRF Binary


Compatible Bluetooth device with Serial Port Profile (SPP)
 Bluetooth™ version 1.2 compliant
 Bluetooth™ Class 2 operation (up to 3 meter range)
 Frequency : 2.400 to 2.480 GHz
 Modulation: FHSS / GFSK
 RF channels: 79
   Input sensitivity: -80dBm
 Output level: 4dBm

Inside the Box :

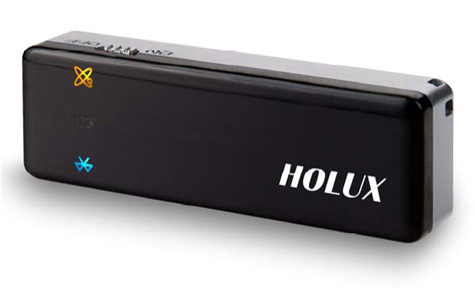

• GPSlim240 Wireless Bluetooth GPS Receiver
• Car Charger
• USB Cable Charger
• Tool CD
• Quick Guide/Warranty Card
